FASTEST IN THE PACK - Vincotech's new sixpack modules
Servo applications and line converters for elevator drives demand high switching frequencies up to 16 kHz. Vincotech’s new family of 1200 V sixpacks featuring flowPACK 1 and flowPACK 2 ensures your designs readily meet these requirements. On top of that, they boost efficiency and cut system costs.
Equipped with high-speed IGBT4 technology to reduce switching losses, these three-phase inverter modules deliver 75 A and 150 A, respectively.
These new extremely fast sixpacks are packaged in the low-inductive industry-standard flow 1 and flow 2 housings. Both modules are also available with phase-change material.
Main benefits:
/ High-speed IGBTs and soft-switching diodes for improved efficiency and very fast performance
/ Kelvin emitter configuration for enhanced current control
/ Integrated thermal sensor for more reliable systems and streamlined designs
General features:
- Three-phase inverter
- High-speed IGBT4 for reduced switching losses
- CAL reverse diodes for reduced switching losses and higher soft-switching performance
- Integrated thermal sensor
- High-side sense
Target applications:
- Industrial drives
- Servo and elevator drives

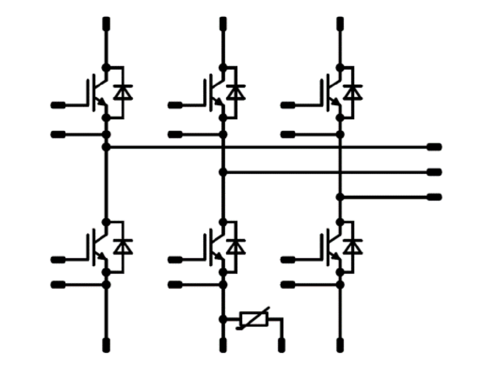

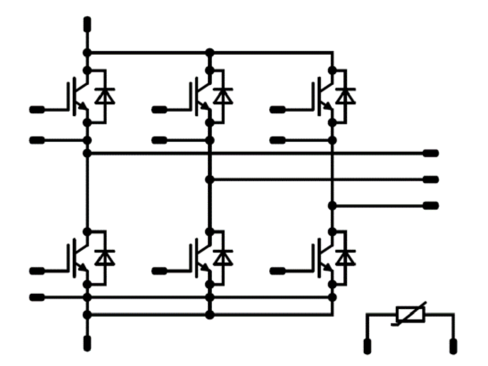

flowPACK 1 and flowPACK 2 schematics
Samples may be sourced on demand from our usual channels. Or you can simply follow these links:
Press Release
- Vincotech_PR-17-10_flowPACK_1_2_1200V-fin.pdf – PDF, 86 KB
