SiC performance @ Si Cost
![](/fileadmin/user_upload/content_media/_processedbee_/d/0/csm_Vincotech_flow1-general_b3ad022a6b.png)

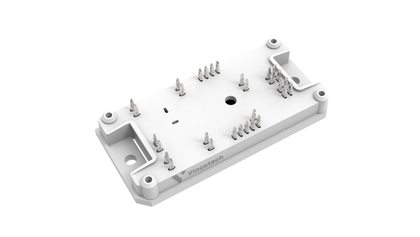

Out now, the latest flowNPC 1 split is here to boost your device’s power density. Featuring tandem diodes in combination with the latest 1200V IGBT technology, it can reduce losses by nearly 30% compared to a standard full-Si module. This low-inductive package achieves high switching frequencies to downsize passive components, the device’s weight and – most importantly – your overall costs.
Main benefits
![](/fileadmin/user_upload/content_media/_processedbee_/a/8/csm_Vincotech_figure-2_NPC_Loss_Breakdown_with_1200_V_Si_Diode_vs_1200_V_SiC_Diode_vs_Tandem_Diode_3f71ade936.jpg)
- Ultra-fast tandem diodes for nearly 30% loss reduction at much the same costs
- Latest 1200 V IGBT technology for high switching frequencies
- Greater power density for lighter, more compact devices
- Longer lifetime with optimized current-sharing
General features
![](/fileadmin/user_upload/content_media/_processedbee_/2/4/csm_Vincotech_figure-1_flowNPC_with_Tandem_Diode_-_Schematic_46fef7944d.png)
- Ultra-fast tandem diodes
- Baseplate-less solution
- Optimal split in two low-inductive packages
- Available with press-fit pins and pre-applied TIM
Target applications
- Solar
- Energy Storage Systems
