Servo drive applications and line converters for elevator drives require switching frequencies up to 16 kHz. Vincotech’s new 1200 V sixpack family features a dual-diode setup not only to equip your designs to easily satisfy these requirements; they also slash system costs. Equipped with high-speed IGBT4 and tandem diode technology, this new

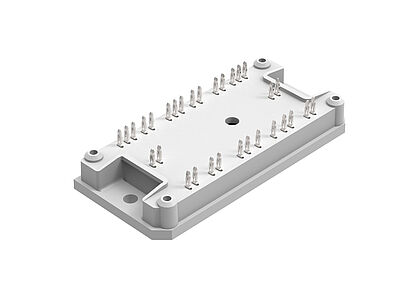

flowPACK 1 family boosts efficiency to strike the best balance between costs and benefits. Packaged in the low-inductive industry-standard flow 1 housing, these three-phase inverter modules cover a wide power range from 25 A up to 75 A.
All modules are also available with phase-change material.

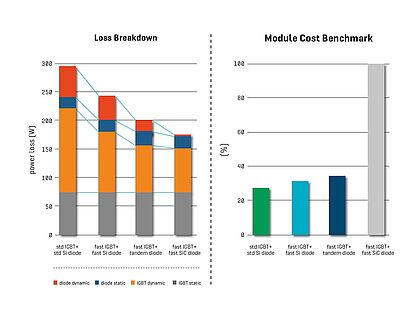

The Tandem Solution for Faster Switching
Main Benefits
- High-speed IGBT4 drives down switching losses
- 650 V diodes in tandem configuration cut the switching losses even further
- Integrated thermal sensor makes it so much easier and cheaper to measure temperature
- Kelvin emitter enhances current control and switching performance
- Standardized footprint for easier, cheaper PCB design
General Features

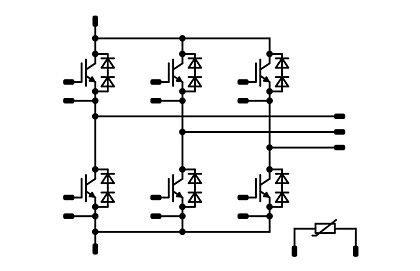

- Three-phase inverter
- High-speed IGBT4 for reduced switching losses
- Tandem diode concept for reduced switching losses
- Integrated thermal sensor
- High-side and low-side sense
Target Applications
- Industrial drives
- Servo and elevator drives
Samples of the flowPACK 1 family are available through our usual channels.
