This ultra compact housing for small power applications is an excellent choice for cost-effective, space-saving design.
The flow 0B housing is sized for smaller power applications, providing a compact alternative to meet the demands of smaller power embedded drives and frequency inverters.
Housing dimensions
- Height: 12 mm / 17 mm
- Length: 35 mm
- Width: 37 mm
Housing Features
- Single-screw heat sink mounting
- Built-in standoffs with optional PCB screw mounting
- For very compact designs
- 12 and 17 mm in height
- Thin 0.38 mm Al2O3 ceramic for improved thermal performance
- Solder or Press-fit pins
- Dimensions: 37 mm x 35 mm
- Phase-change material is available

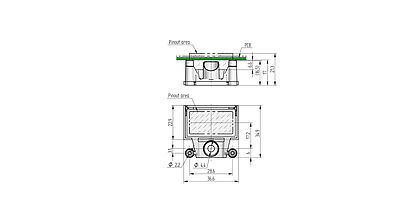

Outline drawing
