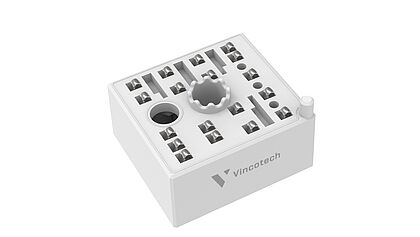

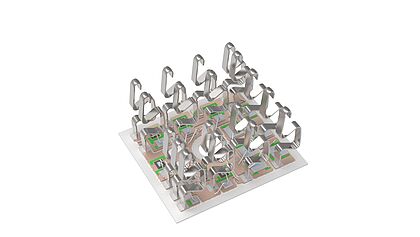

For 10+ years Vincotech offers MiniSKiiP® modules with solderless spring contact mounting technology and pre-applied thermal paste. These second-source modules are affixed with SPRiNG contacts and just a single screw to create electrical and thermal connections and make assembly an exercise in convenience. There is no need for time-consuming, costly mounting procedures, and even entire modules are easy to replace with SPRiNG contacts should the need arise.
Housing dimensions
- Height: 16 mm
- Length: 34 mm
- Width: 31 mm
Thermal interface material options
- Silicone-based standard grease Wacker P12
- Silicone-free standard grease Thermigrease® TG20032
- High Performance Thermal Paste - HPTP (silicone-based)
Lids
Two lids are available for all MiniSKiiP® modules:
- The standard black 6.5 mm version accommodates SMD parts to be mounted below the lid
- The thin, white 2.8 mm version is sized for highly compact mechanical designs
Lid options
|
Thermal grease options |
Lid |
Order code |
|---|---|---|
|
Without thermal grease |
Standard (6.5 mm) |
- /0A/ |
|
Without thermal grease |
Thin (2.8 mm) |
- /0B/ |
|
Silicone-based standard grease - Wacker® P12 |
Standard (6.5 mm) |
- /1A/ |
|
Silicone-based standard grease - Wacker® P12 |
Thin (2.8 mm) |
- /1B/ |
|
Silicone-free standard grease - Thermigrease® TG 20032 / silicone-free |
Standard (6.5 mm) |
- /4A/ |
|
Silicone-free standard grease - Thermigrease® TG 20032 / silicone-free |
Thin (2.8 mm) |
- /4B/ |
|
High Performance Thermal Paste - HPTP (silicone-based) |
Standard (6.5 mm) |
- /5A/ |
|
High Performance Thermal Paste - HPTP (silicone-based) |
Thin (2.8 mm) | - /5B/ |
Order codes
Example order code for different lids and applied grease:
- Version 1: V23990-K220-A40-/1A/-PM
- Version 2: 80-M206BIA045fH-K999E10-/1A/

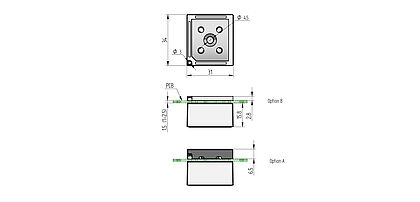

Outline drawing
