The low-inductive design of the VINco X package featuring onboard DC capacitors extends maximum switching frequencies up to 20 kHz, which is unique in this power range.

Housing dimensions

  • Height: 16 mm
  • Length: 242 mm
  • Width: 130 mm

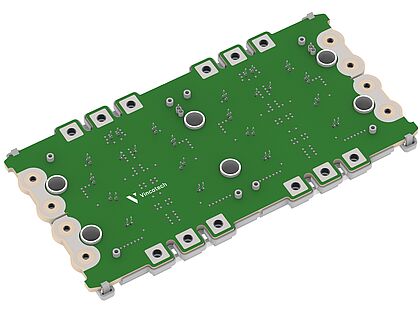

A Modular Package

  • Low-inductive PCB
  • Optional onboard snubber capacitors
  • High-current screw terminals
  • Independent baseplates for better thermal performance

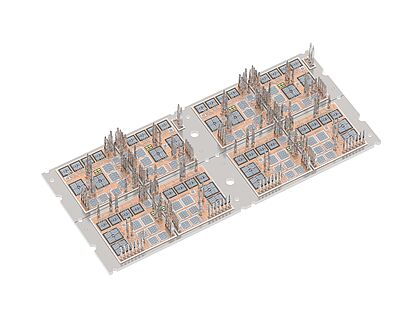

3D Preview

Benefits

  • Optimized for three-level topologies
  • Enables high switching frequencies
  • Fully symmetrical layouts
  • Modular construction
  • Low-inductive path for easy paralleling
  • Optional snubber capacitors
  • Multiple chipset combinations

Features

  • NPC Up to 800 A
  • Stray inductance: 5 – 15 nH* NPC low-inductive path
  • Easy paralleling:<5 nH module to module

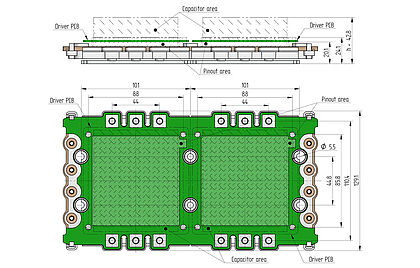

Outline drawing
