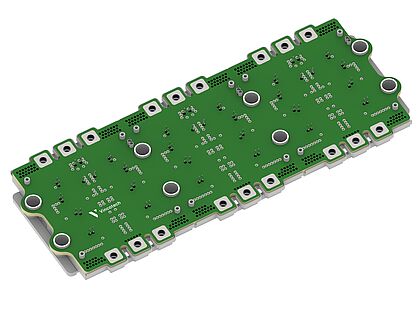

The low-inductive design of the VINco X package featuring onboard DC capacitors extends maximum switching frequencies up to 20 kHz, which is unique in this power range.

Housing dimensions

• Height: 16 mm
• Length: 323 mm
• Width: 130 mm

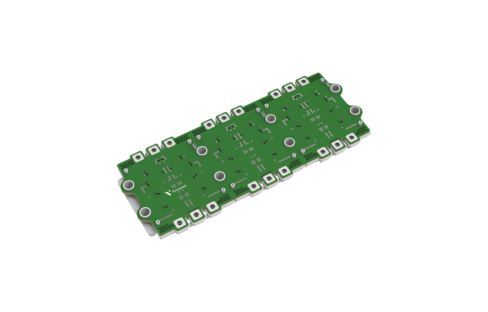

A Modular Package

• Low-inductive PCB

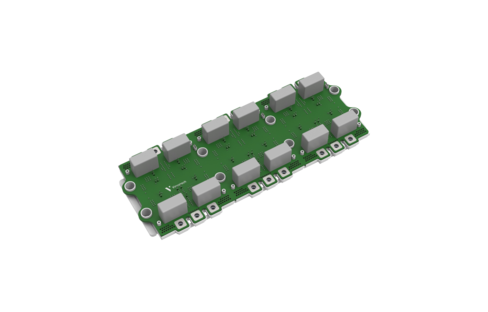

• Optional onboard snubber capacitors
• High-current screw terminals

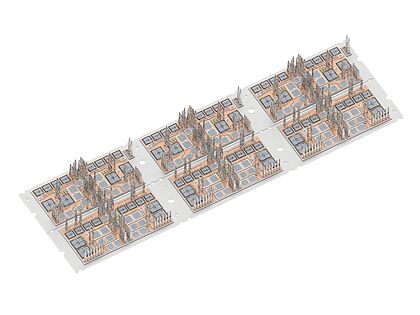

• Independent baseplates for better thermal performance

Benefits

• Optimized for three-level topologies
• Enables high switching frequencies
• Fully symmetrical layouts
• Modular construction
• Low-inductive path for easy paralleling
• Optional snubber capacitors
• Multiple chipset combinations

Features

• MNPC up to 1800 A
• NPC Up to 1200 A
• Stray inductance: 5 – 15 nH* NPC low-inductive path / 3 – 10 nH* MNPC
