flow90: PERFECT FOR BOOK-SIZED INVERTERS AND RACK-MOUNTED POWER SUPPLIES
![flow90 housing flow90 housing](/fileadmin/user_upload/content_media/_processedbee_/4/2/csm_flow90_housings-1080x810_c508639a2b.jpg)

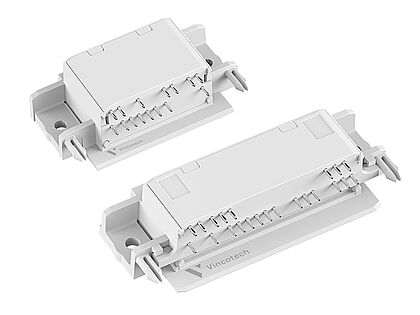

The flow90 housings are used for standard products with CON, PIM, and PACK configurations and make the most of the PCB to minimize the application‘s footprint.
Vincotech’s flow90 1 as well as the new flow90 0 housings feature a space-saving package enabling a 90-degree angle between heat sink and PCB. These modules allow the installation of the power module on the same side of the PCB as other through-hole components. Featuring pins arrayed at a 90-degree angle, there is no need for a flexible PCB.
The flow90 modules eliminate costly L-shaped heat sinks and enables easy mounting by clipping the module right in to the PCB. The flow90 housing comes in 2 sizes: flow90 1 with 35 x 84 x 21 mm and the new flow90 0 with 38 x 66 x 21 mm.
Sample modules may be sourced on demand from our usual channels.
Press Release
- PR-flow90_0-new_housing-2013-05-14_fin.pdf – PDF, 59 KB
