THE BIDIRECTIONAL FAST-TRACK TO FULL CURRENT CAPABILITY

fastPACK 0 HC - the new H-bridge to up your application's speed and efficiency.

fastPACK 0 HC
fastPACK 0 HC
Vincotech's new fastPACK 0 HC provides  30, 50 or 75 A @ 650 V. The module works both ways to bring a trinity of big benefits to your application. Delivering 30+ kHz fsw the new H-bridge provides speed, efficiency and full-current capability for bidirectional usage. Featuring high frequency IGBT H5 technology the fastPACK 0 HC module is available in low-inductive flow 0 housing.

Main Features:

  • High frequency IGBT H5
  • fsw > 30 kHz
  • Suitable for soft switching
  • Full current fast FWD for bidirectional application
  • Integrated capacitors for reduced EMI
  • NTC


Target applications:

  • UPS
  • SMPS
  • Solar
  • Welding

fastPACK 0 HC

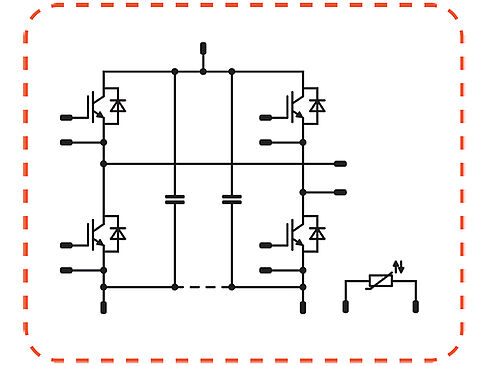

fastPACK 0 HC schematics

 fastPACK 0 HC overview:

Part-No.Voltage in V Current  in A Housing Comment
10-FZ074PA030SM-L623F08 650 30 flow 0 12mm Solder pin
10-PZ074PA030SM-L623F08Y 650 30 flow 0 12mm Press-fit
10-FZ074PA050SM-L624F08 650 50 flow 0 12mm Solder pin
10-PZ074PA050SM-L624F08Y 650 50 flow 0 12mm Press-fit
10-FZ074PA075SM-L625F08 650 75 flow 0 12mm Solder pin
10-PZ074PA075SM-L625F08Y 650 75 flow 0 12mm Press-fit

This new fastPACK 0 HC can also be provided with Phase-change material on request.

Samples of this utmost efficient H-bridge module may be sourced on demand from our usual channels.
