VINCOTECH'S NEW PFC MODULE: HERE TO GEAR UP THREE-PHASE APPLICATIONS

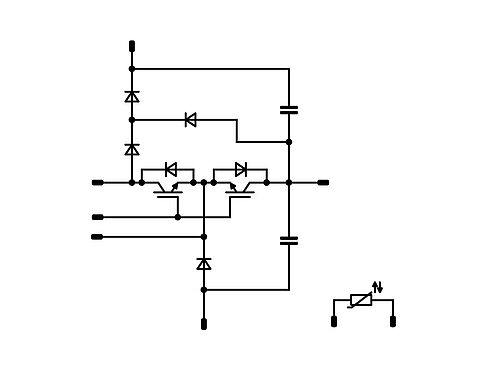

Vincotech's new flowANPFC 0 modules featuring an advanced neutral boost PFC topology are aimed to help vendors step up efficiency and drive down costs. This ultra compact module packs a lot of power into a petit housing. Offering impressive performance at a remarkably low price, the flowANPFC 0 line goes a long way towards cutting manufacturers' overall system costs. These modules feature a unique PFC topology for three-phase applications that deliver up to 40 kW. Equipped with the latest high-speed, 650 V IGBT chip technologies, flowANPFC 0 modules can serve to attain switching frequencies up to 75 kHz. Integrated NTCs monitor temperature and built-in snubbing capacitors improve EMC. The new flowANPFC 0 modules come in compact, low-inductive flow 0 housings 12 mm in height. Press-fit pins and phase-change material are available on request. Both make assembly much easier, and the phase-change material also improves thermal performance.
