MEET HIGH EMC STANDARDS AND CUT COST

New flow7PACK Family for motion control applications and exacting EMC standards

flow7PACK 0/1/2 family
flow7PACK 0/1/2 family
Vincotech announced the release of its new flow7PACK power modules engineered for motion control applications and exacting EMC standards. This new 1200 V product family features a brake, three-phase inverter and the latest chip technology. Power electronics designers are constantly seeking innovative, flexible solutions to satisfy the industry's tough demands for EMC, a small footprint and low system costs. The flow7PACK family is a remarkably flexible and convenient option for applications in which EMC presents a problem because of the PIM module's compact design. Equipped with a brake and three phase inverter, a flow7PACK module can serve as an independent solution that accommodates a locally separated single-phase or a three-phase input rectifier in the design. Featuring low-inductance layouts, clever pin-outs and very compact 17 mm housings, flow7PACK power modules serve applications ranging from 8 A to 100 A.

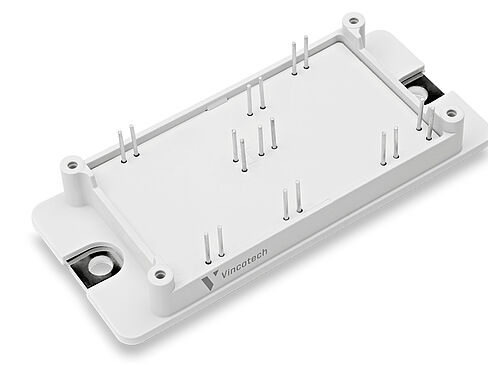

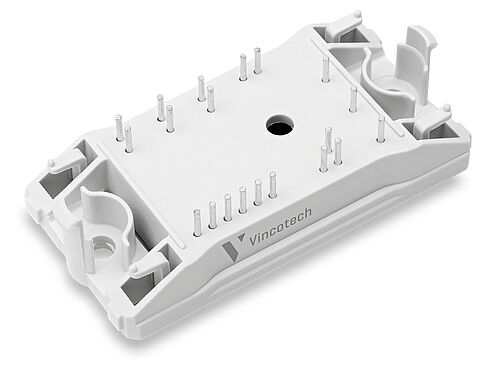

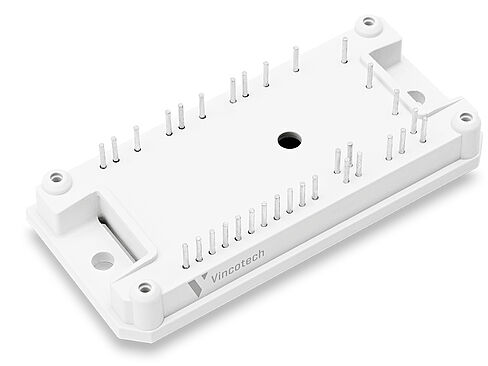

flow7PACK familiy housing variants

General features:

/ Sixpack with brake
/ IGBT4 (1200 V) technology for low conduction losses
/ Compact and low inductance design
/ Built-in NTC
/ flow 0, flow 1 and flow 2 17 mm housing

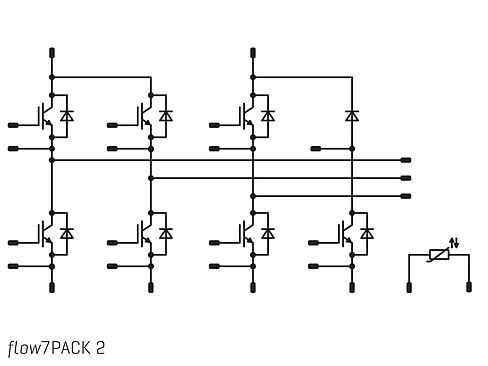

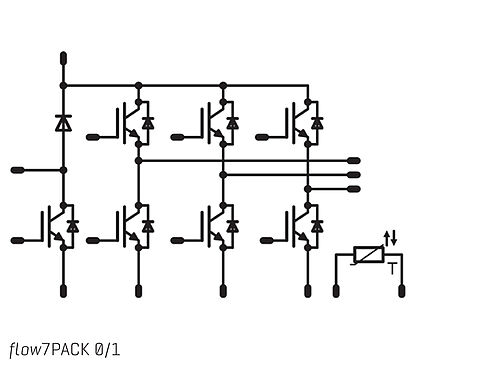

flow7PACK schematics

flow7PACK modules overview featuring 1200 V:

Family Part-No. Current in A Comments
flow7PACK 0 10-F0127PA008SC-L156E09 8 IGBT4
flow7PACK 0 10-F0127PA015SC-L158E09 15 IGBT4
flow7PACK 0 10-F0127PA025SC-L159E09 25 IGBT4
flow7PACK 1 10-F1127PA025SC-L167E09 25 IGBT4
flow7PACK 1 10-F1127PA035SC-L168E09 35 IGBT4
flow7PACK 1 10-F1127PA050SC-L169E09 50 IGBT4
flow7PACK 2 30-F2127PA050SC-L177E09 50 IGBT4, flow 2 housing with baseplate
flow7PACK 2 30-F2127PA075SC-L178E09 75 IGBT4, flow 2 housing with baseplate
flow7PACK 2 30-F2127PA100SC-L179E09 100 IGBT4, flow 2 housing with baseplate

For the new flow7PACK family solder pins and a built-in NTC are standard, while Press-fit pins and pre-applied phase-change material are available on demand.

Samples of these modules may be sourced on demand from our usual channels.
