flowNPFC 1 SiC
Basic module information
| Part number: | 10-FY07LBA100S5-PG08J58T |
|---|---|
| Product line: | flowNPFC 1 SiC |
| Product status: | Samples available |
| Break down voltage: | 650 V |
| Nominal chip current rating: | 100 A |
| Standard Packing Quantity: | 100 |
| Module datasheet: | PDF, 7 MB |
Product details

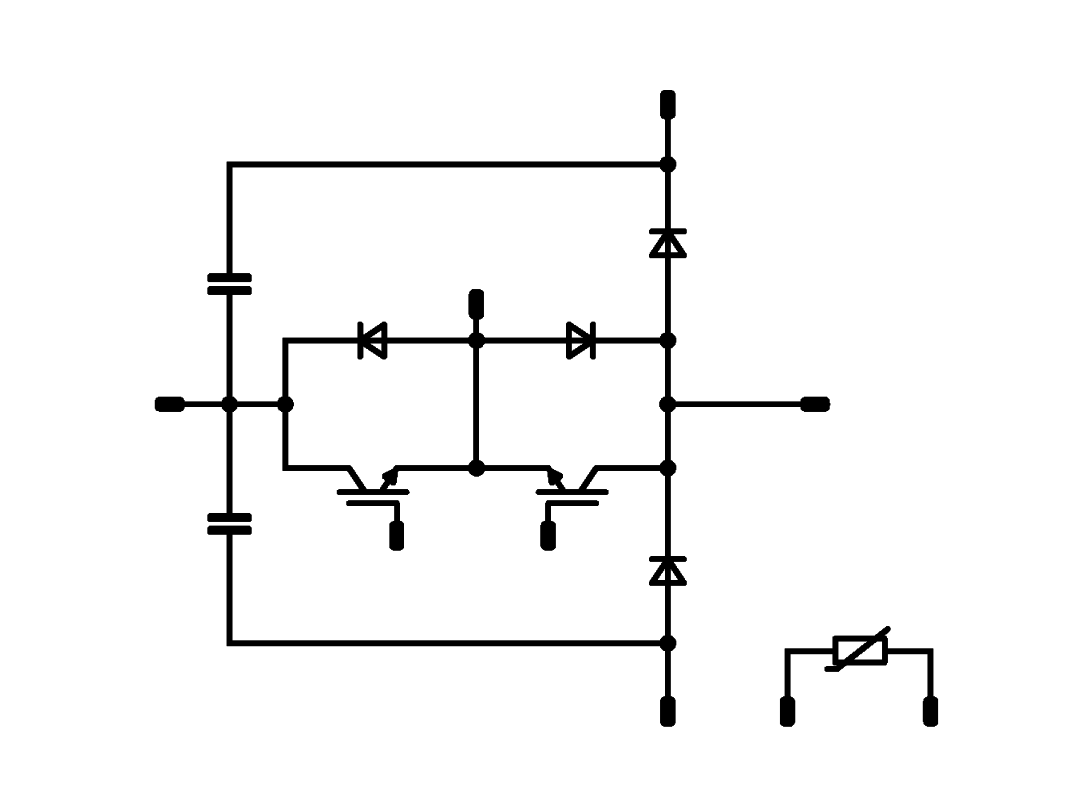

| Topology: | PFC (Three-phase applications) |
|---|
- Integrated DC capacitor
- Kelvin Emitter for improved switching performance
- Low inductive commutation loop
- Neutral Boost PFC
- Temperature sensor
| Chip technology (main switch): | IGBT S5 |
|---|
- High speed and smooth switching
- Low gate charge
- Very low collector emitter saturation voltage
| Base isolation (e.g. ceramic): | Al2O3 |
|---|---|
| Electrical interconnection: | Press-fit pin |
Load this product to the simulation environment to get an overview of its performance.
Simulate this moduleHousing related details
| Module housing: | flow 1 |
|---|---|
| Mechanical connection to the PCB: | 4 towers |
| Footprint: | 82 mm x 37.4 mm |
| Height: | 12 mm |
- Convex shaped substrate for superior thermal contact
- Thermo-mechanical push-and-pull force relief
- Press-fit pin
- Reliable cold welding connection
