flowPIM® 1 + 3xPFC
Basic module information
| Part number: | 10-FY12APA036MR-PB18E98Z |
|---|---|
| Product line: | flowPIM® 1 + 3xPFC |
| Product status: | Samples available |
| Break down voltage: | 1200 V |
| Nominal chip current rating: | 15 A |
| Standard Packing Quantity: | 100 |
| Module datasheet: | PDF, 16 MB |
Product details

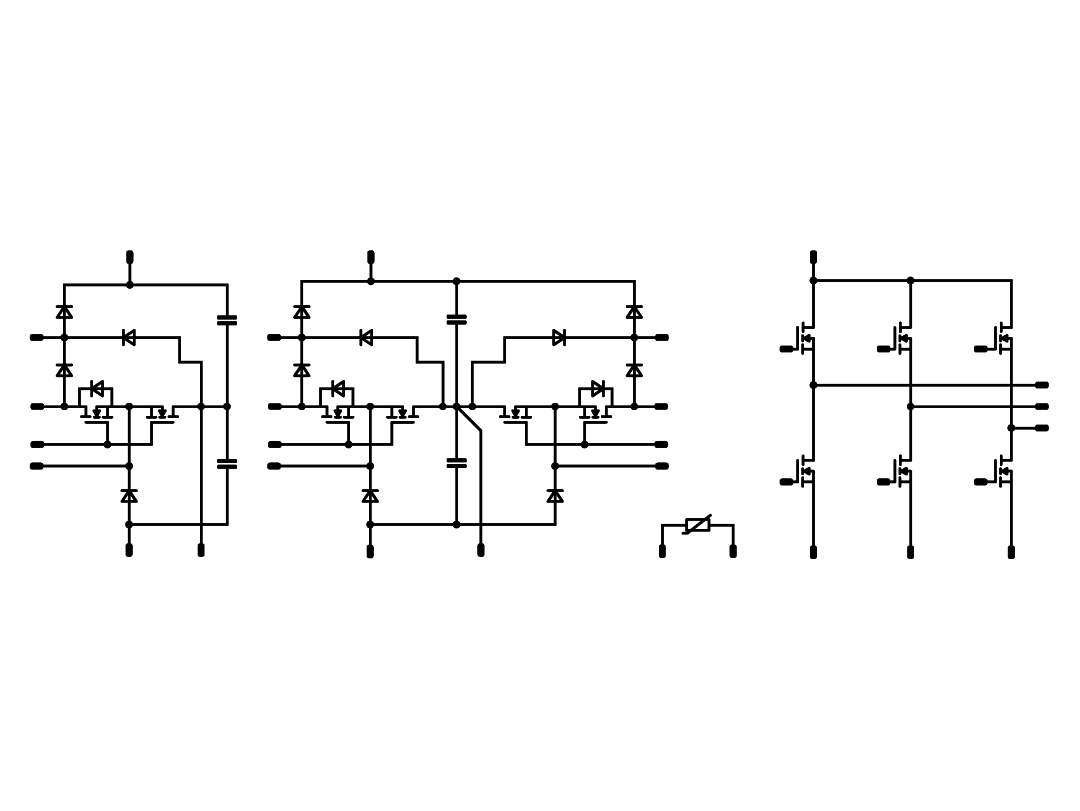

| Topology: | PIM+3xPFC (CIP) |
|---|
- Open Emitter configuration
- Temperature sensor
- Inverter
- 3ph Advanced Neutral PFC
| Chip technology (main switch): | SiC MOSFET |
|---|
- Easy paralleling
- Low on-resistance
- Fast switching speed
- Fast recovery body diode
| Base isolation (e.g. ceramic): | Al2O3 |
|---|---|
| Electrical interconnection: | Press-fit pin |
Load this product to the simulation environment to get an overview of its performance.
Simulate this moduleHousing related details
| Module housing: | flow 1 |
|---|---|
| Mechanical connection to the PCB: | 4 towers |
| Footprint: | 82 mm x 37.4 mm |
| Height: | 12 mm |
- Convex shaped substrate for superior thermal contact
- Thermo-mechanical push-and-pull force relief
- Press-fit pin
- Reliable cold welding connection
