flowBOOST 1 dual SiC

Basic module information

Part number: 10-PY12B2A040MS-LP25L08Y
Product line: flowBOOST 1 dual SiC
Product status: Samples available
Break down voltage: 1200 V
Nominal chip current rating: 35 A
Standard Packing Quantity: 100
Module datasheet: PDF, 7 MB


Product details

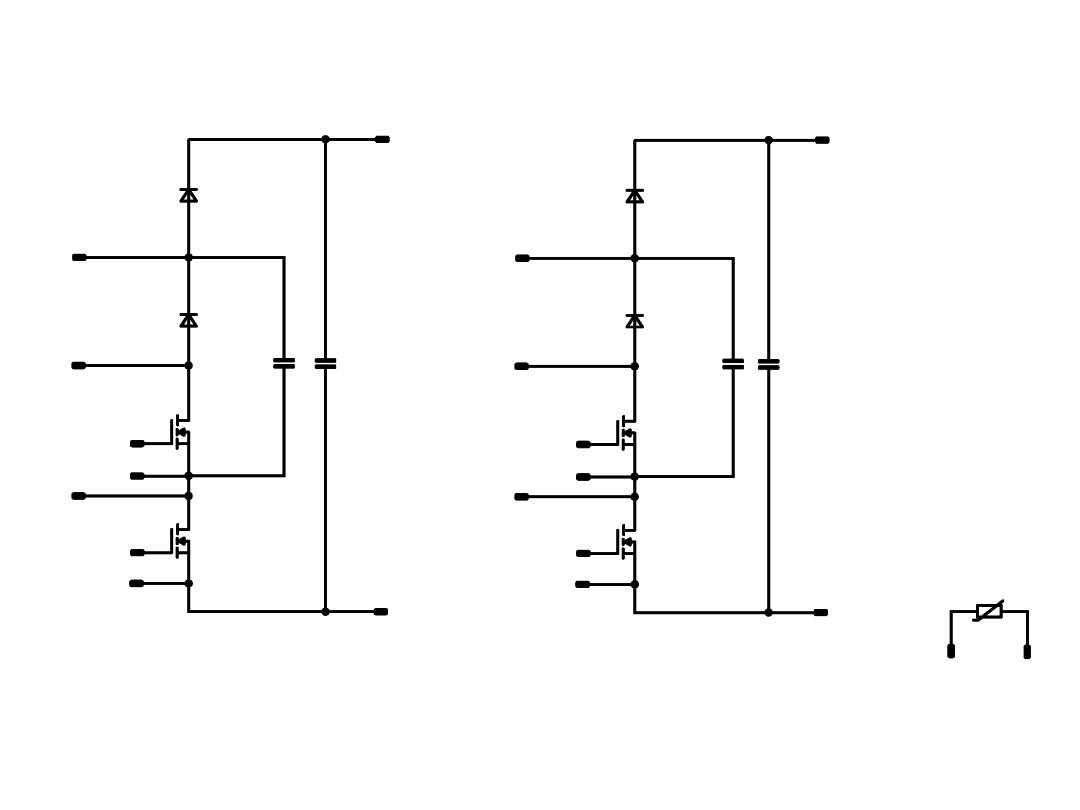

Topology: Three-level FC Booster
  • Kelvin Emitter for improved switching performance
  • Integrated DC capacitor
  • Temperature sensor
  • Integrated FC Capacitor
  • Three-level Flying Cap Booster
Chip technology (main switch): SiC MOSFET
  • High Blocking Voltage with low drain source on state resistance
  • High speed SiC-MOSFET technology
  • Resistant to Latch-up
Base isolation (e.g. ceramic): Al2O3
Electrical interconnection: Press-fit pin

Load this product to the simulation environment to get an overview of its performance.

Simulate this module

Housing related details

Module housing: flow 1
Mechanical connection to the PCB: 4 towers
Footprint: 82 mm x 37.4 mm
Height: 12 mm
  • Convex shaped substrate for superior thermal contact
  • Thermo-mechanical push-and-pull force relief
  • Press-fit pin
  • Reliable cold welding connection
