flowNPC S3 split

Basic module information

Part number: B0-SL10NIB600S701-PA29F48Z
Product line: flowNPC S3 split
Product status: Series - Preferred
Break down voltage: 950 V
Nominal chip current rating: 600 A
Standard Packing Quantity: 45
Module datasheet: PDF, 5 MB


Product details

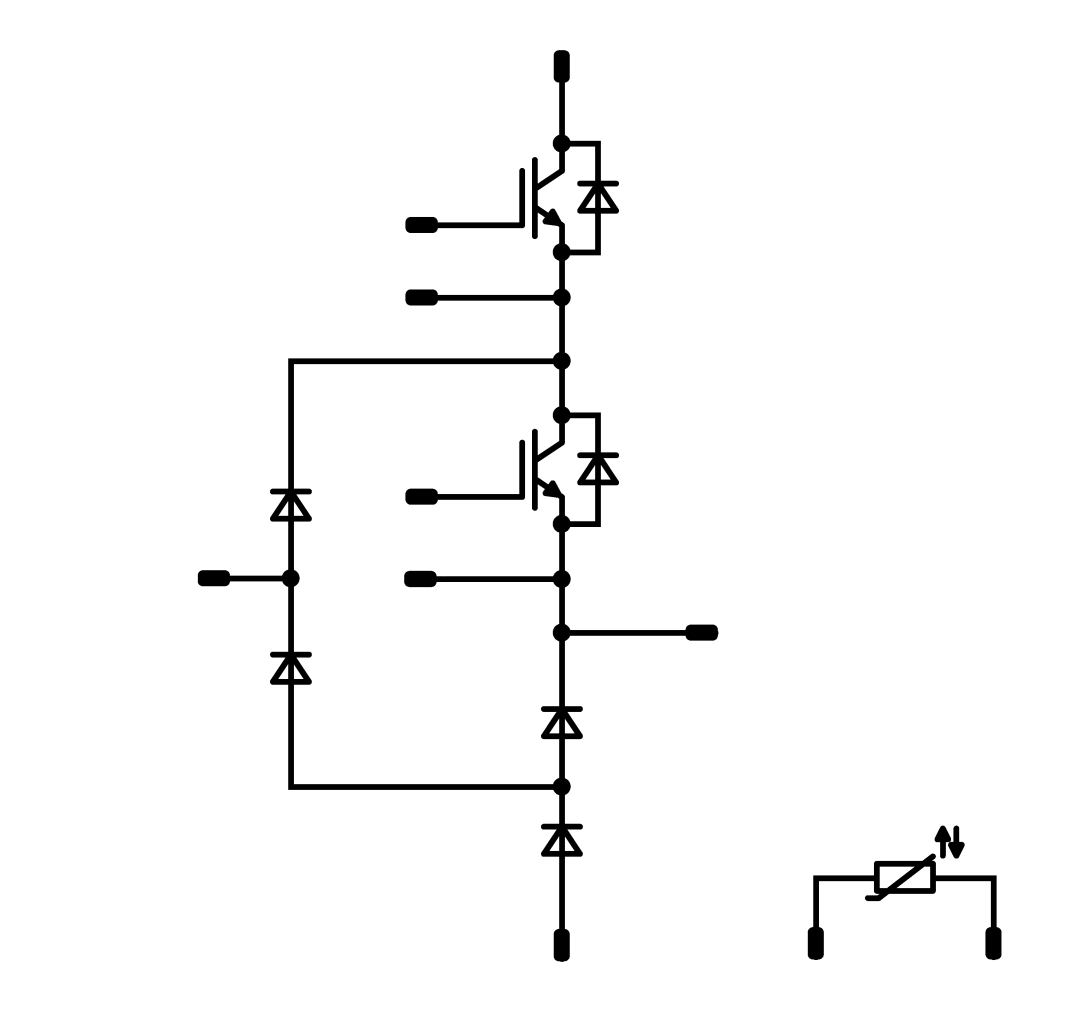

Topology: Three-level NPC (I-Type)
  • Kelvin Emitter for improved switching performance
  • Temperature sensor
  • Neutral Point Clamped Topology (I-Type)
  • Split topology
Chip technology (main switch): IGBT S7
  • Low collector emitter saturation voltage
  • High speed and smooth switching
Base isolation (e.g. ceramic): AlN
Electrical interconnection: Press-fit pin

Load this product to the simulation environment to get an overview of its performance.

Simulate this module

Housing related details

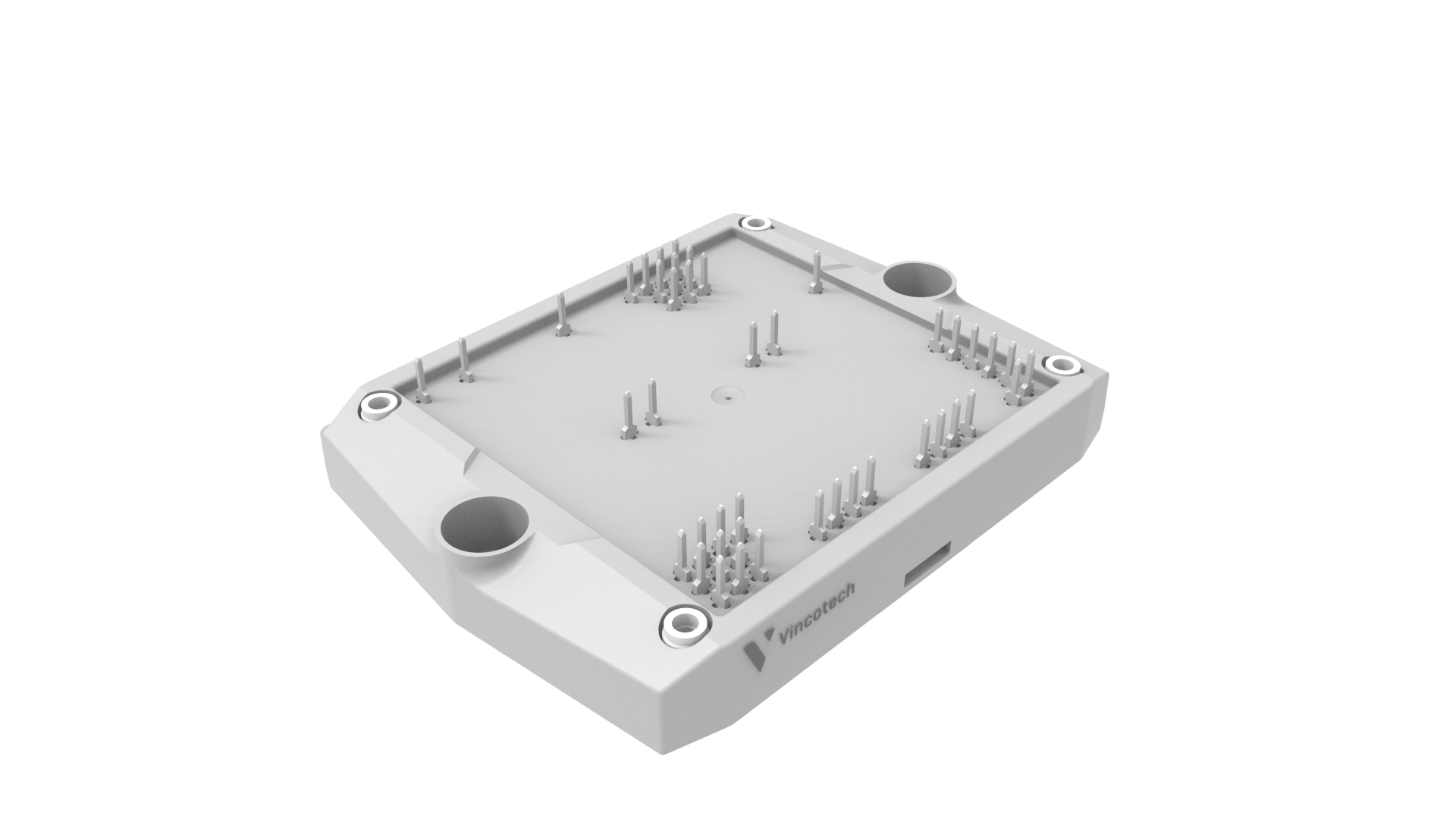

Module housing: flow S3
Mechanical connection to the PCB: 4 towers
Footprint: 81.8 mm x 61.3 mm
Height: 12 mm
  • CTI600 housing material
  • Compact, baseplate-less housing
  • VINcoPress Technology
  • Thermo-mechanical push-and-pull force relief
  • Press-fit pin
  • Reliable cold welding connection
